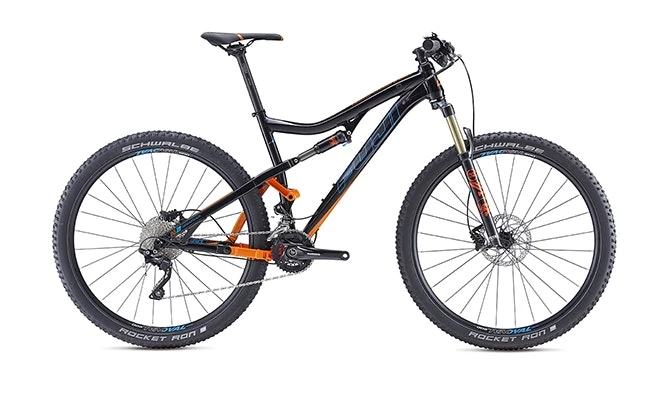

Fuji Rakan 29 1.5 2016

Fuji RAKAN 29 1.5 – Conquer Your Mountain

Specifications

SIZES S (15″), M (17″), L (19″), XL (21″)
COLOR(S) Gloss Black w/ Orange and Blue
MAIN FRAME Fuji A6-SL custom-butted alloy tubing w/ hydroformed top tube, tapered 1 1/8″ – 1.5″ head tube, PF30 bottom bracket, sealed cartridge bearing pivots
REAR TRIANGLE Fuji A6-SL custom-butted alloy w/ Fuji MLink patented suspension system, shaped ride-tuned chainstay, 148x12mm dropout, replaceable hanger, sealed cartridge bearing pivots, 120mm travel
FORK Fox 32 FLOAT 29 Performance FIT 3-position w/ remote lockout, tapered alloy steerer, 15x110mm thru axle, 120mm travel
REAR SHOCK Fox Float Performance 3-position
CRANKSET Shimano Deore, hollow Tech II w/ integrated spindle, 36/22T
BOTTOM BRACKET Shimano sealed cartridge, PF30 adaptor included
PEDALS N/A
FRONT DERAILLEUR Shimano Deore, side swing, direct-mount
REAR DERAILLEUR Shimano Deore XT shadow plus, 10-speed
SHIFTERS Shimano Deore Ispec, Rapid Fire, 20/30-speed
CASSETTE Shimano HG-50, 11-36T, 10-speed
CHAIN KMC X10 w/ Missing Link, 10-speed
WHEELSET Oval Concepts 600 CL disc wheelset, 28h, 15x110mm front, 148x12mm rear, cartridge bearing hubs, welded rims, stainless spokes
TIRES Schwalbe Rocket Ron Performance, 29″ x 2.25″ 67tpi, folding
BRAKE SET Shimano M447, hydraulic disc, 180/160mm rotors
BRAKE LEVERS Shimano M506, hydraulic disc
HEADSET FSA NO. 9M/12B, 1 1/8″ – 1.5″, sealed cartridge bearings
HANDLEBAR Oval Concepts 250, 6061 alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise
STEM Oval Concepts 313, 6061 3D-forged alloy, 31.8mm clamp diameter, 7° rise
TAPE/GRIP Oval Concepts 600 SLO, single-density Kraton, lock-on
SADDLE Oval Concepts 200 w/ steel rails
SEAT POST Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
ACCESSORY
WEIGHT, KG/LBS 13.47kg / 29.63lbs
