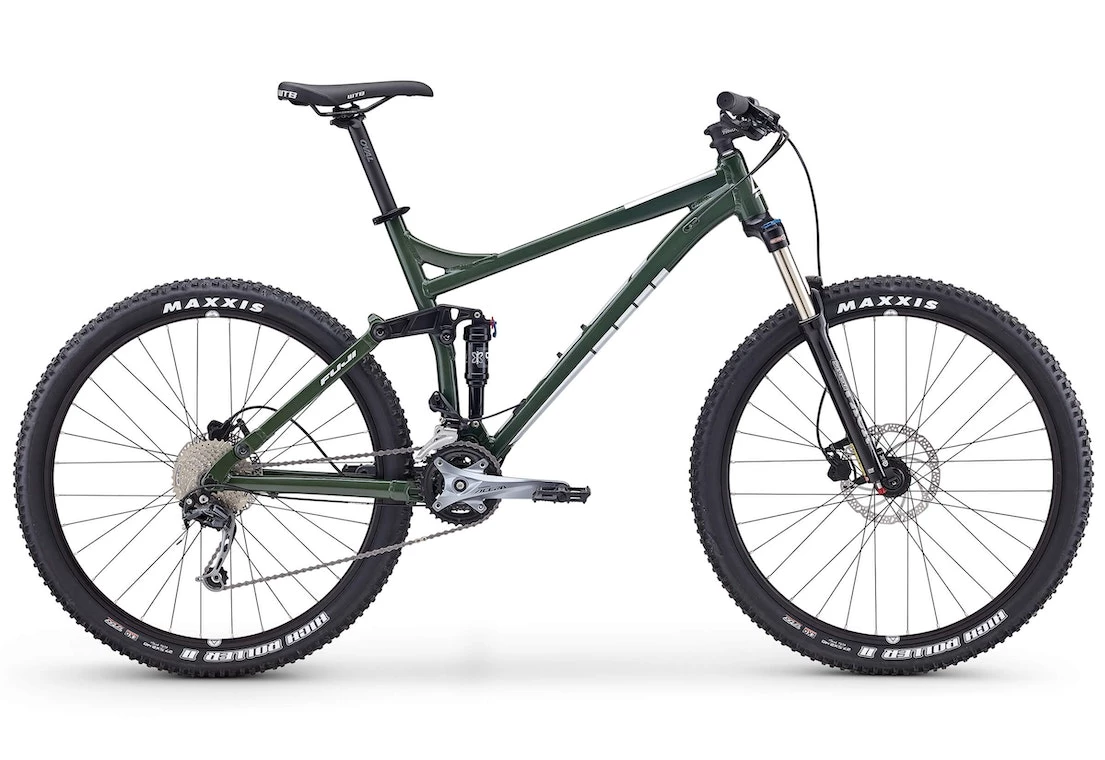

Fuji Reveal 27.5 1.3 2019

The Reveal is a capable trail bike ready to conquor some singletrack. 27.5″ wheels & 120mm of travel through the new A4 rear suspension soak up rough trails & keep the bike balanced when the tires leave the dirt. The new design adds torsional stiffness to the frame, which helps put power to every pedal stroke.

Specifications

SIZES

S (15″), M (17″), L (19″), XL (21″)

COLOR(S)

Metallic Green

FRAME

Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12MM, 120MM

FORK

SR Suntour SF15-XCR-LO-R Coil 27.5 w/ tapered alloy steerer, 100x15mm, 120mm

REAR SHOCK

X-Fusion 02 Pro RL

CRANKSET

Shimano Acera, 36/22T

BOTTOM BRACKET

VP-BC73, sealed cartridge bearing

PEDALS

Resin platform

FRONT DERAILLEUR

Shimano Alivio

REAR DERAILLEUR

Shimano Deore

SHIFTERS

Shimano Alivio, Rapid Fire, 2 x 9-speed

CASSETTE

Shimano HG200-9, 11-36T

CHAIN

KMC Z99

WHEELSET

Fuji Aluminum rims 32H, Formula DC-51 front, DC-1248 rear hubs, stainless black spokes

TIRES

Maxxis High Roller II, 27.5″ x 2.40″, 60tpi, EXO, folding

BRAKESET

Tektro HD-M285, 180/160mm rotors

BRAKE LEVERS

Tektro HD-M285

HEADSET

FSA 1 1/8″ – 1.5″, sealed bearings

HANDLEBAR

Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm

STEM

Oval Concepts 600AM, alloy, 0°

GRIPS

Fuji Performance Grip

SADDLE

Oval Concepts 238 trail

SEAT

SEAT POST

Oval Concepts, alloy, 30.9mm

FENDERS

HEADLIGHT

TAILLIGHT

REAR CARRIER

DRIVE UNIT

BATTERY

DISPLAY

ACCESSORIES

WEIGHT

15.44 kg. / 34.00 lbs.
